3-PIECE BALL VALVES
3-Piece Tube Full Port Sanitary Ball Valve
Product Description
Features:
● For High Purity Applications: Bio-Technology, Food & Beverage, Semiconductor, Cosmetic
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing

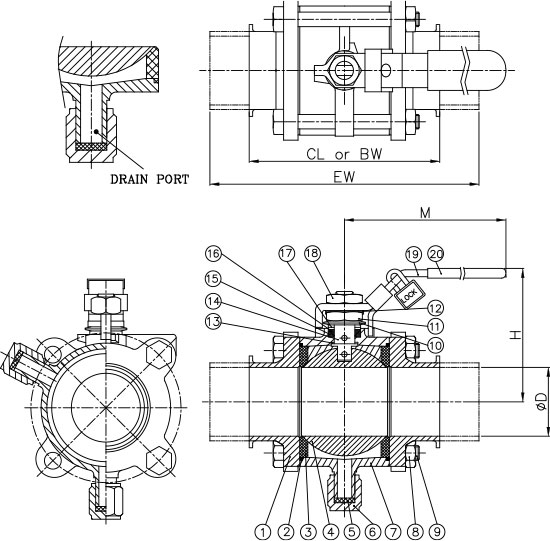

● 3-Piece Swing-In-Place Construction

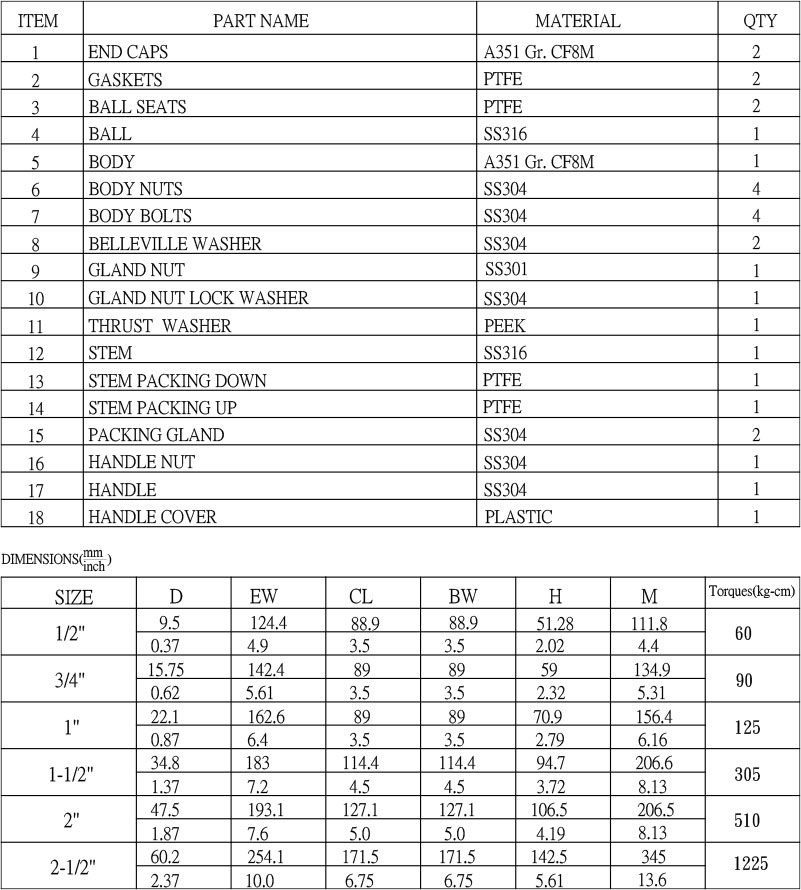

● Investment Casting Body in CF8M and Weld End in CF3M
● Shell and Seat tested to API 598 and meet ANSI/FCI70-2 Class VI and MSS SP-61 Seat Leakage Requirements
● Meet ASTM Material Specifications and USDA, FDA Material Requirements
● Temperature Range (PTFE): -20ﾟF ~ 350ﾟF

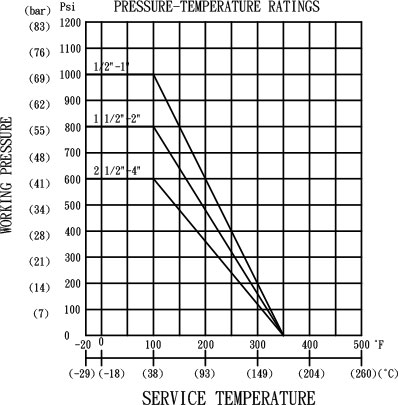

● Maximum Pressure(PTFE): 1000 PSI (1/2”~1”)800 PSI (1 1/2”~2”) 600 PSI (2 1/2”~4”) 300 PSI (6”)
● End Type: Clamp, Tube Butt Weld, Extended Tube Weld Ends on request
● 25 Ra Internal Surface Finish
● Option: Standard or Cavity Filled Seats
