Product Description

● For Chemical and Industrial Applications
● ISO 5211 Mounting Pad
● Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34
● Shell and Seat tested to ANSI B16.34 and API 598 Length to ANSI B16.10, Connection to ANSI B16.5
● Temperature Range (CF): -20゚F ~ 420゚F
● Maximum Pressure(CF): ANSI 150: 275 PSI WOG
● End type: ANSI 150 on request.
● Option: Anti-Static Device

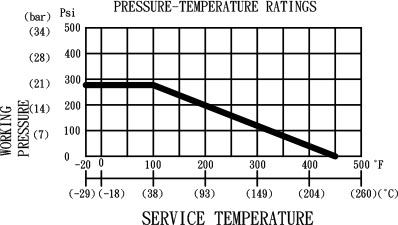

Pressure & Temperature Chart

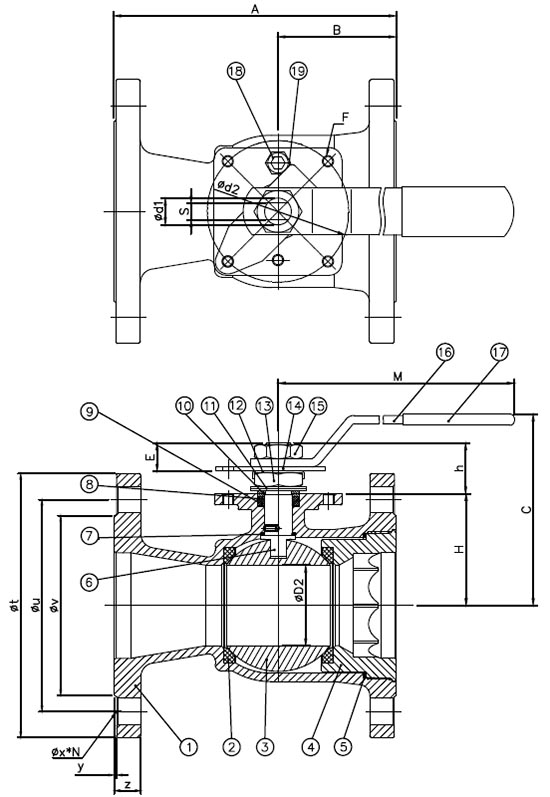

Schematic Diagram

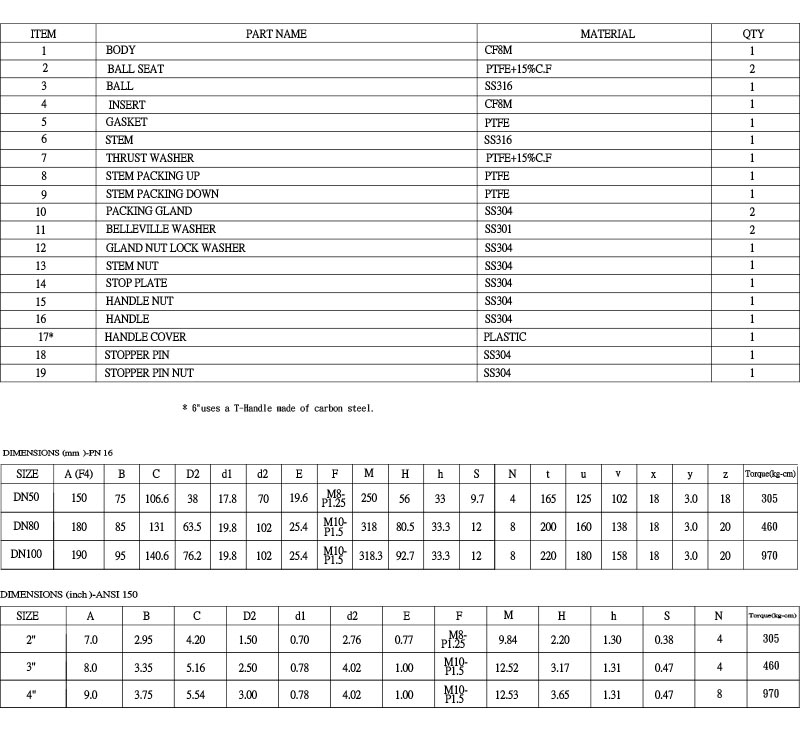

Materials and Measurements
