MULTI-PORT BALL VALVES
3-Way Reduced Port Ball Valve
Product Description
Features:
● For Chemical and Industrial Applications
● Actuator Mounting Pad
● Blow-Out-Proof Stem
● Locking Device
● Live-Loaded Stem Packing
● Investment Casting Body and Cap in Stainless Steel or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598

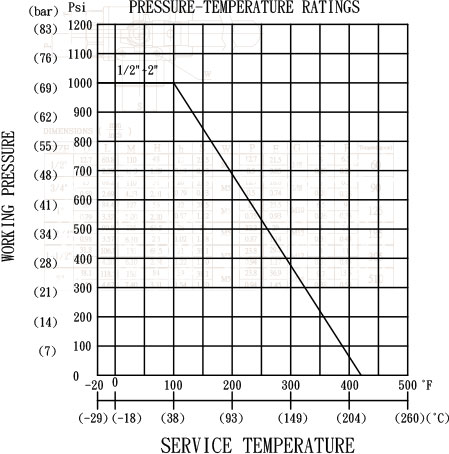

● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 1000 PSI WOG (1/2”~2”)
● End Type: NPT, RP, Rc, G: ANSI B 1. 20.1, BS21, DIN 259/2999, ISO 228…etc on request
● For Chemical and Industrial Applications
● Actuator Mounting Pad
● Blow-Out-Proof Stem
● Locking Device
● Live-Loaded Stem Packing
● Investment Casting Body and Cap in Stainless Steel or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598
● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 1000 PSI WOG (1/2”~2”)
● End Type: NPT, RP, Rc, G: ANSI B 1. 20.1, BS21, DIN 259/2999, ISO 228…etc on request
