Features:
● For Chemical and Industrial Applications
● Full Port/Standard Port
● Dual Pattern ISO 5211 Direct Mount Pad
● 4-Position Lever Handle
● Blow-Out-Proof Stem, Locking Device
● High-Cycle, Live-Loaded Stem Packing
● Balanced 4-Seat Construction
● O-Ring Stem Bearing
● Investment Casting Body and Cap in Stainless Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598

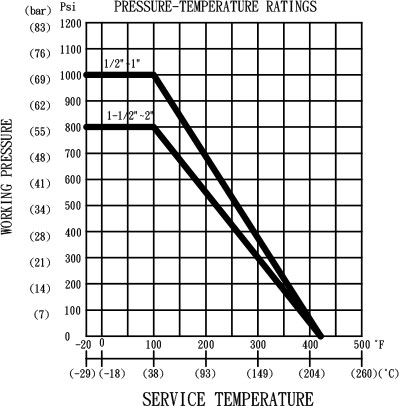

● Temperature Range (RTFE): -20ﾟF ~ 420ﾟF
● Maximum Pressure(RTFE): 1000 PSI WOG (1/4”~1”) 800 PSI WOG (1 1/4”~2”)
● End Type: NPT, SW, BW, RP, Rc, G: ANSI B 1. 20.1, B16.11, B16.25, BS21,DIN 259/2999, ISO 228…etc on request
