3-Piece Full Port /Standard Port Ball Valve

Product Description

● For Chemical and Industrial Applications
● Dual pattern ISO 5211 Direct Mount Pad (no bracket or Drive coupling needed for automation)
● Locking Device & Blow-Out-Proof Stem
● High-Cycle, Live-Loaded Stem Packing
● 3-Piece Swing-In-Place Construction
● O-Ring Stem Bearing
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34, MSS-SP-110 and API 598
● Temperature Range (RTFE): -20゚F ~ 420゚F
● Maximum Pressure(RTFE): 1440 PSI WOG (Class 600)
● End Type: NPT, SW, BW, Flange, RP, Rc, G: ANSI B 1. 20.1, B16.11, B16.25, B16.5, BS21, DIN 259/2999, ISO 228…etc on request
● Anti-Static Device

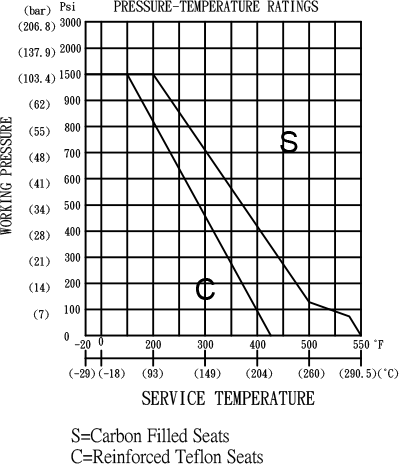

Pressure & Temperature Chart

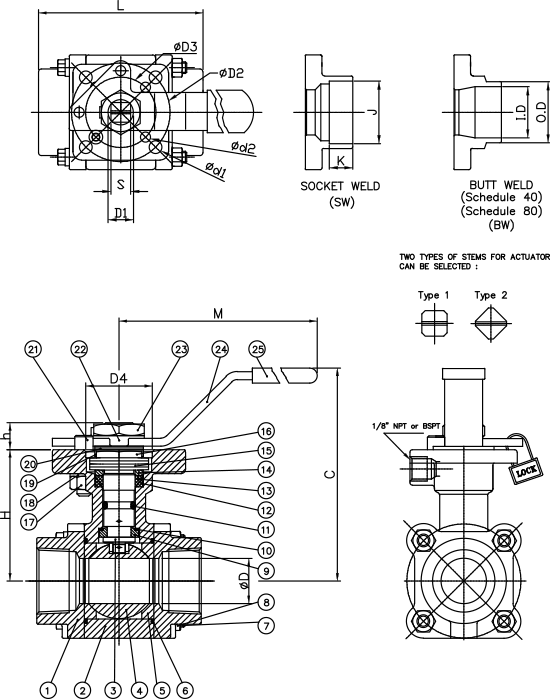

Schematic Diagram

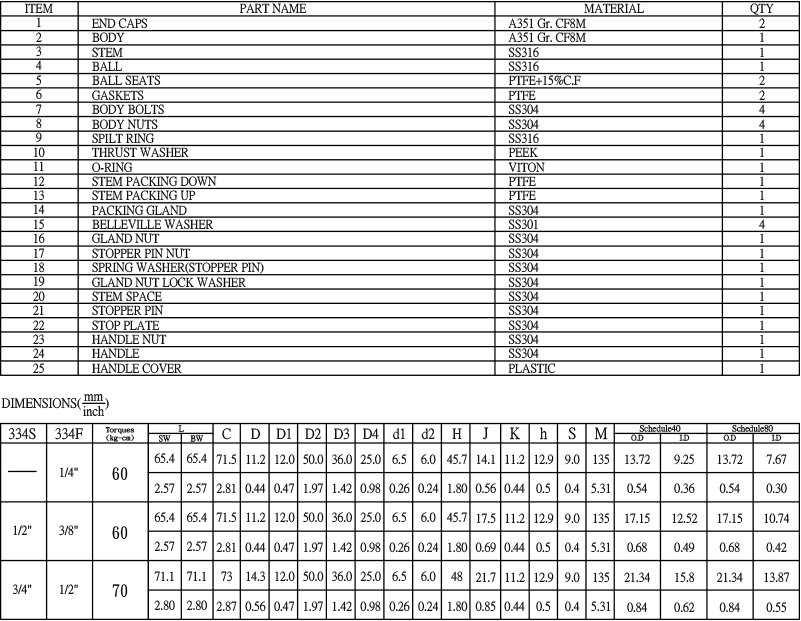

Materials and Measurements
