1-PIECE BALL VALVES
1-Piece Reduced Port Ball Valve
Product Description
Features:
● For Chemical and Industrial Applications
● Male x Female Connections
● Blow-Out-Proof Stem
● Investment Casting Body and Cap in Stainless or Carbon Steel
● Basic Construction: ANSI B16.34 & EN 12516-1
● Shell and Seat tested to ANSI B16.34 and API 598

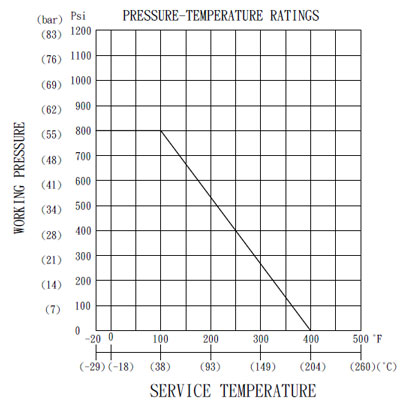

● Temperature Range (PTFE): -20ﾟF ~ 400ﾟF
● Maximum Pressure(PTFE): 800 PSI CWP
● End Type: NPT, RP, Rc, G: Thread ANSI B 1. 20.1, BS21, DIN 259/2999, ISO 228…etc on request
